LED TV series
| Item | TL-108 | TL-135 | TL-162 |
| Pixel Pitch | 1.25 mm | 1.5625 mm | 1.875 mm |
| Max Brightness Calibrated | 800 nits (black) | 800 nits (black) | 800 nits (black) |
| Panel Dimension | 2455 x 2182 x 120 mm | 3055 x 2520 x 120 mm | 3655 x 2858 x 120 mm |
| Panel Resolution ( H x V ) | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 |
| Frame Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Weight Per Panel | 8 kg | 8 kg | 8 kg |
| Power Consumption Max / Average | 2400 W / 800 W | 3600 W / 1200 W | 5600 W / 1800 W |
| Transparency | Solid | Solid | Solid |
| Serviceability | Front | Front | Front |
| Curving (Concave & Convex) | N/A | N/A | N/A |
| SMD Configuration | SMD1010 Black | SMD1010 Black | SMD1415 Black |
| Physical Density | 640,000 Pixels / ㎡ | 409,600 Pixels / ㎡ | 284,444 Pixels / ㎡ |
| Viewing Angle ( H / V) | 140° / 140° | 140° / 140° | 140° / 140° |
| Refresh Rate | 2880 Hz | 2880 Hz | 2880 Hz |
| Gray Scale | 14 bit | 14 bit | 14 bit |
| Scan Ratio | 1/27 | 1/54 | 1/60 |
| Operational Temp / Humidity | - 20° ~ 45°C / 10-90% RH | - 20° ~ 45°C / 10-90% RH | - 20° ~ 45°C / 10-90% RH |
| Storage Temp / Humidity | - 40° ~ 60°C / 10-90% RH | - 40° ~ 60°C / 10-90% RH | - 40° ~ 60°C / 10-90% RH |
| IP Rating (Front / Rear) | IP30 / IP30 Indoor | IP30 / IP30 Indoor | IP30 / IP30 Indoor |
*Note: The specifications are for reference, actual values may vary.No Data
Others

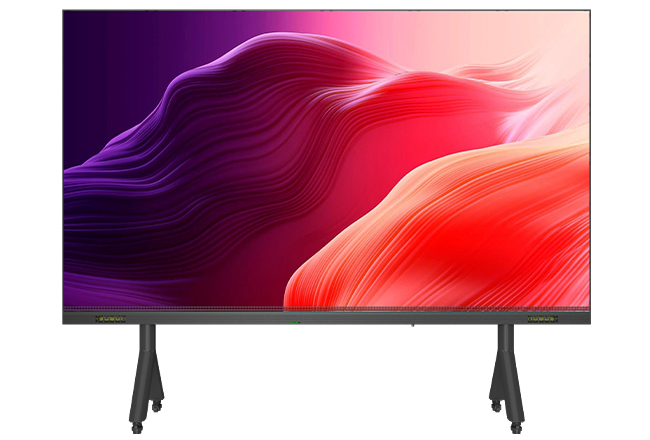

LED TV series
Ultra-high-definition display, finely detailed and lossless picture quality, built-in video processing capabilities, and seamless screen switching and splicing.
Ultra - wide color gamut display performance, supports switching of multiple display modes, standard mode, soft mode, cinema mode, conference mode and eye-protect mode. Brightness, saturation, contrast , color temperature and hue are all adjustable.
Industrial-grade control system, stable and reliable performance, with mobile control software, simple and casual interaction.
Size (Inches) :108 / 135 / 162
Customized all-in-one conference panel, 108'', 135'', 162'' available, integrating TV, computer, audio and poster, pixel pitch can be P1.25 / P1.5625 / P1.667 / P1.875, to meet different requirements of customers.
16:9 golden ratio design for cabinet, which is convenient for splicing 16:9 large screens, and easily achieves FHD/ 4K/ 8K super display splicing, matches mainstream 16:9 videos, maximizing the true reproduction of image, and avoiding blurring or deformation caused by picture enlargement or shrinking.
Product thickness only 30mm, 4KG/cabinet weight, square weight just 20KG , suitable for conference all-in-one , ultra-thin screen installation.
Each cabinet with 4 pcs modules, using hardware connection technology, high-density connectors, no exposed flat cables and power cables, higher integration to reduce failure rate.
