SRH series
Standard 27.5" Size
FHD/4K Pixel to Pixel Resolutions
4 IN 1 Integrated Packaging
IMD Integrated Packaging

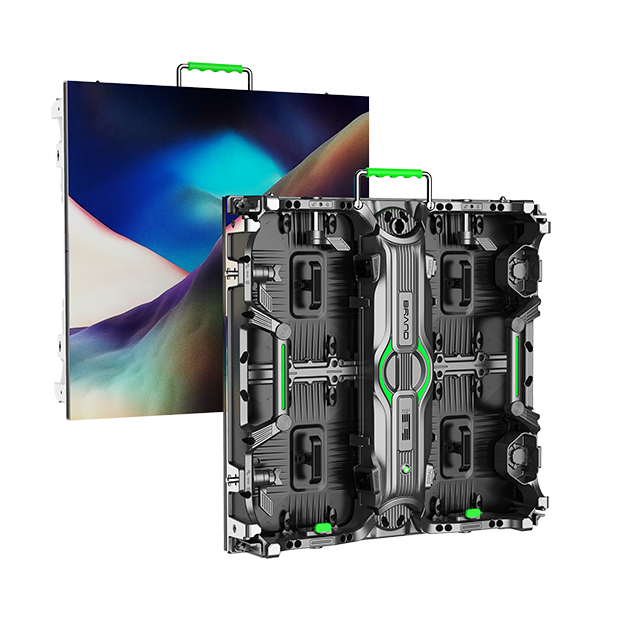

About SRH series
| Tile - 500 / 1000 | SRH 2.6 | SRH 2.9 | SRH 3.9 | SRH 4.8 |
| Pixel Pitch | 2.604 mm | 2.976 mm | 3.91 mm | 4.81 mm |
| Max Brightness Calibrated | 1000 nits (black) | 1000 nits (black) | 5000 nits (black) | 4500 nits (black) |
| Panel Dimension | 500 x 500 x 90 mm / 500 x 1000 x 90 mm | |||
| Panel Resolution ( H x V ) | 192 x 192 / 192 x 384 | 168 x 168 / 168 x 336 | 128 x 128 / 128 x 256 | 104 x 104 / 104 x 208 |
| Frame Material | Diecasting Aluminum Alloy | Diecasting Aluminum Alloy | Diecasting Aluminum Alloy | Diecasting Aluminum Alloy |
| Weight Per Panel | 7.5kg / 12.5 kg | |||
| Power Consumption Max / Average | 500 W / 250 W Per m2 | 500 W / 250 W Per m2 | 750 W / 375 W Per m2 | 750 W / 375 W Per m2 |
| Transparency | Solid | Solid | Solid | Solid |
| Serviceability | Front / Rear | Front / Rear | Rear | Rear |
| Curving (Concave & Convex) | Custom 10° ~ 15° | Custom 10° ~ 15° | Custom 10° ~ 15° | Custom 10° ~ 15° |
| SMD Configuration | SMD2121 Black | SMD2121 Black | SMD2121 Black | SMD2121 Black |
| Physical Density | 147,456 Pixels / m2 | 112,896 Pixels / m2 | 65,536 Pixels / m2 | 43,264 Pixels / m2 |
| Viewing Angle ( H / V) | 160° / 140° | 160° / 140° | 160° / 140° | 160° / 140° |
| Refresh Rate | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz |
| Gray Scale | 14 bit | 14 bit | 14 bit | 14 bit |
| Scan Ratio | 1/32 | 1/28 | 1/16 | 1/13 |
| Operational Temp / Humidity | - 20° ~ 45°C / 10-90% RH | - 20° ~ 45°C / 10-90% RH | - 20° ~ 45°C / 10-90% RH | - 20° ~ 45°C / 10-90% RH |
| Storage Temp / Humidity | - 40° ~ 60°C / 10-90% RH | - 40° ~ 60°C / 10-90% RH | - 40° ~ 60°C / 10-90% RH | - 40° ~ 60°C / 10-90% RH |
| IP Rating (Front / Rear) | IP30 / IP30 Indoor | IP30 / IP30 Indoor | IP65 / IP65 | IP65 / IP65 |
*Note: The specifications are for reference, actual values may vary.
No Data
Standard 16:9 Size
Pixel to Pixel 4K&FHD Resolutions
G.A.LED Common Cathode Technology
G.A.LED common cathode technology improves brightness with better heat dissipation
High brightness high contrast with perfect performance
Others
SRH series
Front & Rear Maintenance
To be able to access components or perform maintenance tasks from both the front-facing and rear-facing sides of the panel, simplify installation, troubleshooting, and routine maintenance procedures.
Operating Temperature
Wide range of operating temperature from -20℃ to 60℃，ensures reliability and performance across various environmental conditions, from freezing cold to scorching heat..
