SDM series
| Item | SDM 1.25 | SDM 1.6 | SDM 1.8 | SDM2.5 |
| Pixel Pitch | 1.25 mm | 1.667 mm | 1.818 mm | 2.5 mm |
| Max Brightness Calibrated | 400 nits (black) | 500 nits (black) | 500 nits (black) | 800 nits (black) |
| Panel Dimension | 640 x 360 x 65 mm | 640 x 360 x 65 mm | 640 x 360 x 65 mm | 640 x 360 x 65 mm |
| Panel Resolution ( H x V ) | 512 x 288 | 384 x 216 | 352 x 198 | 256 x 144 |
| Frame Material | Diecasting Aluminum Alloy | Diecasting Aluminum Alloy | Diecasting Aluminum Alloy | Diecasting Aluminum Alloy |
| Weight Per Panel | 8 kg | 8 kg | 8.5 kg | 8.5 kg |
| Power Consumption Max / Average | 500 W / 250 W Per ㎡ | 500 W / 250 W Per ㎡ | 500 W / 250 W Per ㎡ | 500 W / 250 W Per ㎡ |
| Transparency | Solid | Solid | Solid | Solid |
| Serviceability | Front | Front | Front | Front |
| Curving (Concave & Convex) | N/A | N/A | N/A | N/A |
| SMD Configuration | SMD1010 Black | SMD1212 Black | SMD1515 Black | SMD2121 Black |
| Physical Density | 640,000 Pixels / ㎡ | 360,000 Pixels / ㎡ | 302,500 Pixels / ㎡ | 160,000 Pixels / ㎡ |
| Viewing Angle ( H / V) | 160° / 140° | 160° / 140° | 160° / 140° | 160° / 140° |
| Refresh Rate | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz |
| Gray Scale | 14 bit | 14 bit | 14 bit | 14 bit |
| Scan Ratio | 1/72 | 1/54 | 1/33 | 1/36 |
| Operational Temp / Humidity | - 20° ~ 45°C / 10-90% RH | - 20° ~ 45°C / 10-90% RH | - 20° ~ 45°C / 10-90% RH | - 20° ~ 45°C / 10-90% RH |
| Storage Temp / Humidity | - 40° ~ 60°C / 10-90% RH | - 40° ~ 60°C / 10-90% RH | - 40° ~ 60°C / 10-90% RH | - 40° ~ 60°C / 10-90% RH |
| IP Rating (Front / Rear) | IP30 / IP30 Indoor | IP30 / IP30 Indoor | IP30 / IP30 Indoor | IP30 / IP30 Indoor |
*Note: The specifications are for reference, actual values may vary.No Data
Others
SDM series
Ultra-wide viewing angle 160°/140°，allows for viewing from various angles without significant loss of color accuracy or contrast.
Primarily convenience and accessibility for maintenance purposes, modules and components can be accessed and serviced from the front side, without needing to access the rear of the display. Front maintenance is a practical solution that enhances the usability and reliability of indoor fixed installation LED displays.
Size (Inches) :108 / 135 / 162

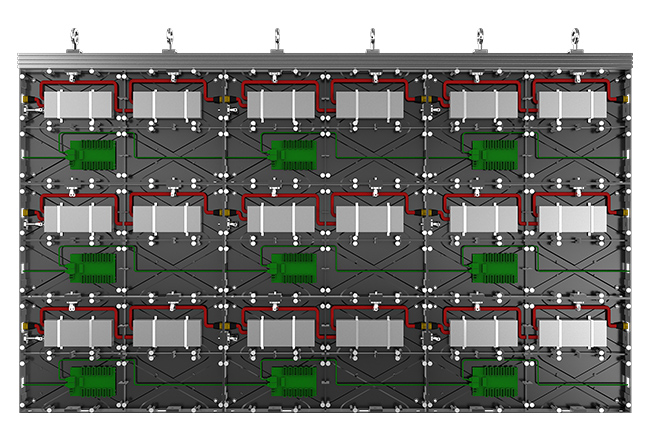

Wireless connection between cabinets. No wire exposing outside screen, interior cable with aviation plug, stable and solid, to make sure that the power transmission is fault-free.
The fast lock link between the cabinets to make the installation convenient, fast and firm, and make the whole set beautiful and clean.
